High performance in a small footprint

  • Potential range ±3 V or ±6 V
  • Max. current ±30 mA or ±200 mA
  • Wireless control
  • Extendable with multiplexer
  • iR compensation
Category: PalmSens

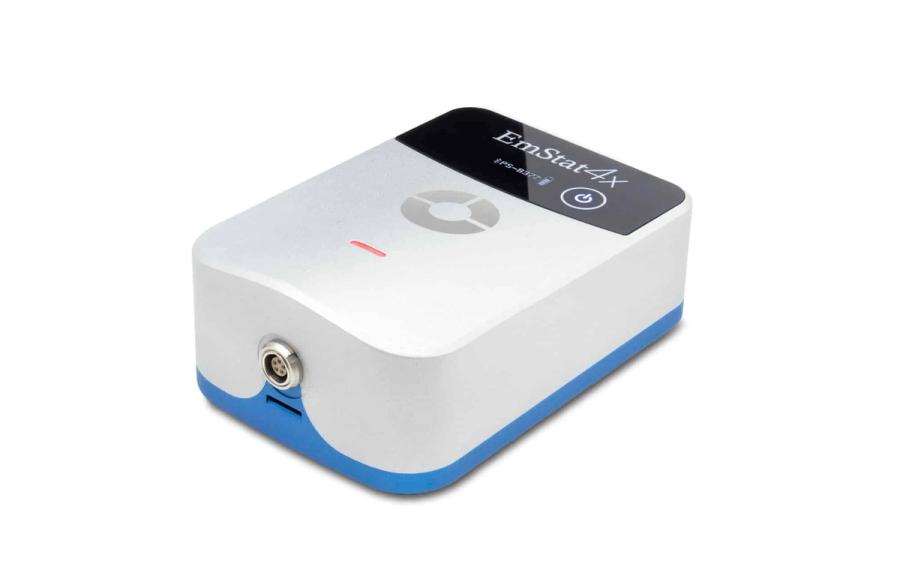

The EmStat4X delivers high performance in a small footprint. The EmStat4X is a small battery and USB-powered Potentiostat, Galvanostat, and optional Frequency Response Analyser (FRA) for Electrochemical Impedance Spectroscopy (EIS). The EmStat4X Low Range (LR) version is great for applications that require measuring low currents down to picoamps, like (bio)sensor research. The High Range (HR) version is very suitable for applications that need a maximum current of up to 200 mA. The EmStat4X is controlled with PSTrace for Windows, or you can write your own MethodSCRIPT and control it from any platform or operating system.


The EmStat4X LR and HR features include:

  • Fast EIS support: for running fixed-frequency EIS measurements at a very low interval of around 1 ms.
  • Auxiliary Port: for connecting to a MUX8-R2 multiplexer, temperature sensor, pH sensor, stirrer control, triggering and more.
  • iR compensation: to compensate for the iR drop between the Reference electrode and the outside of the double layer of the electrochemical cell.
  • Bluetooth: for a wireless connection to a PC, smartphone or tablet
  • 11.1 Wh battery: for more than 8 hours of continuous measurements (typical with the LR).
  • Small borderless display: showing the state of the battery and connectivity.

Two versions

The EmStat4X comes in two different versions:

  • Low Range: for lower currents and potentials (±30 mA / ±3 V applied / ±5 V compliance)
  • High Range: for higher currents and potentials (±200 mA / ±6 V applied / ±8 V compliance)

Both versions can be configured with optional EIS/FRA up to 200 kHz.
See specifications for a detailed comparison between the LR and HR.

EmStat4X  – strona producenta

EmStat4X  – katalog



Voltammetric techniques

  • Linear Sweep Voltammetry (LSV)
  • Cyclic Voltammetry (CV)
  • Fast cyclic Voltammery (FCV)
  • AC Voltammetry (ACV)

Amperometric techniques

  • Chronoamperometry (CA)
  • Zero Resistance Amperometry (ZRA)
  • Chronocoulometry (CC)
  • MultiStep Amperometry (MA)
  • Fast Amperometry (FAM)
  • Pulsed Amperometric Detection (PAD)

Galvanostatic techniques

  • Linear Sweep Potentiometry (LSP)
  • Chronopotentiometry (CP)
  • MultiStep Potentiometry (MP)
  • Open Circuit Potentiometry (OCP)

Pulsed techniques

  • Differential Pulse Voltammetry (DPV)
  • Square Wave Voltammetry (SWV)
  • Normal Pulse Voltammetry (NPV)


  • Mixed Mode (MM)
  • Potentiostatic/Galvanostatic Impedance spectroscopy (EIS / GEIS)
    • Potential scan or current scan
    • Fixed potential or fixed current
    • Time scan
  • Fast EIS / GEIS
