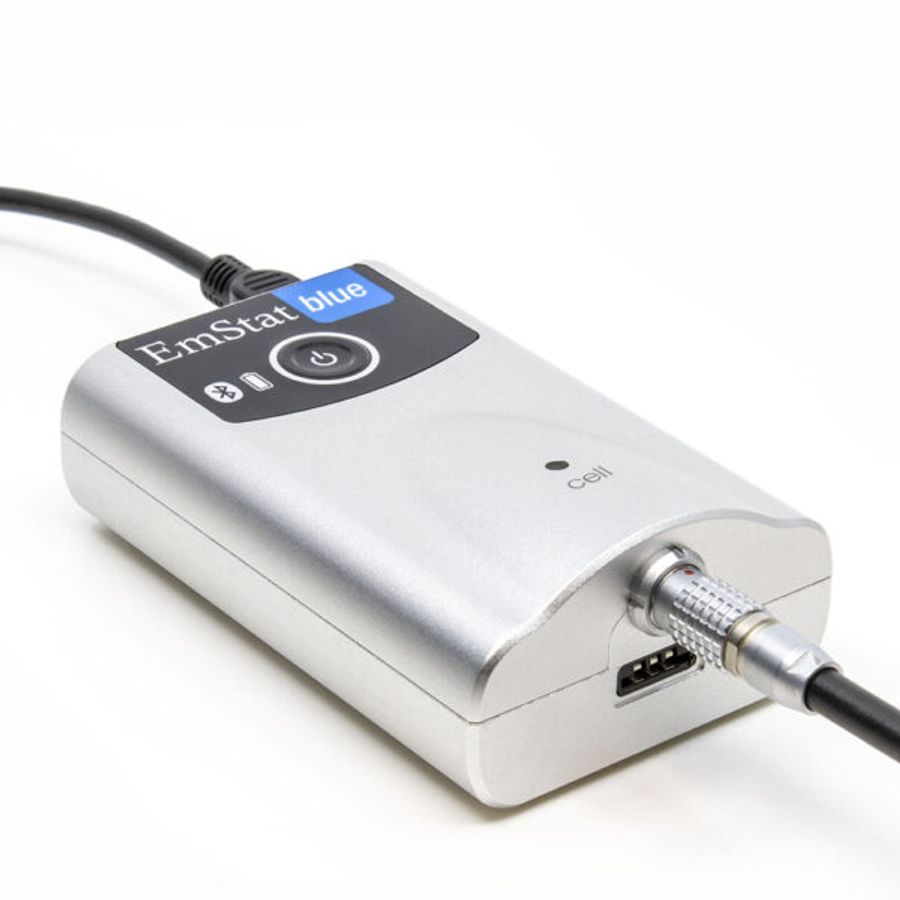

EmStat3 Blue

EmStat3 Blue

Small and wireless potentiostat

  • USB or Wireless Bluetooth connection
  • Potential range ±3 V or ±4 V
  • Current ranges 1 nA to 10 mA or 100 mA
  • Ideal for mobile sensor applications

Opis

EmStat Blue is a small and low cost potentiostat with research grade capabilities. It has eight current ranges from 1 nA to 100 mA (EmStat3+ Blue) full scale, with a minimum resolution of 1 pA. It provides the most relevant electroanalytical measurement techniques and is used with the PSTrace software or with PStouch for Android.

Standard included with an EmStat Blue:

  • Rugged carrying case
  • Crocodile clips
  • Dummy cell
  • USB cable
  • PSTrace software for Windows
  • High quality, double shielded cell cable with
    2 mm banana connectors for Working, Counter, Reference electrode and Ground
EmStat Blue version
3 3+
dc-potential range ± 3.000 V ± 4.000 V
compliance voltage ± 5 V ± 8 V
dc-potential resolution 0.1 mV 0.125 mV
dc-potential accuracy 0.2 % 0.3 %
current ranges 1 nA to 10 mA (8 ranges) 1 nA to 100 mA (9 ranges)
maximum current ± 20 mA typical
and ± 15 mA minimum
± 100 mA typical

EmStat3 Blue – strona producenta

EmStat3 Blue – katalog

Voltammetric techniques

  • Linear Sweep Voltammetry (LSV)
  • Cyclic Voltammetry (CV)

Pulsed techniques

  • Differential Pulse Voltammetry (DPV)
  • Square Wave Voltammetry (SWV)
  • Normal Pulse Voltammetry (NPV)

Galvanostatic techniques

  • Open Circuit Potentiometry (OCP)

Amperometric techniques

  • Chronoamperometry (CA)
  • Zero Resistance Amperometry (ZRA)
  • Chronocoulometry (CC)
  • MultiStep Amperometry (MA)
  • Pulsed Amperometric Detection (PAD)
  • Multiple-Pulse Amperometric Detection (MPAD)

PSTrace

PSTrace for Windows provides support for all techniques and device functionalities. With a smooth simple interface, showing only the applicable controls, PSTrace is suitable for all levels of user experience. Functions include:

  • Direct validation of method parameters
  • Equivalent Circuit Fitting
  • Automated peak search
  • Scripting for running an automated sequence of measurements
  • Open data in Origin and Excel with one click of a button
  • Browse measurements on PalmSens4’s internal storage

PStouch app for Android

PStouch works with all our single channel and multiplexed instruments. PStouch functions include:

  • Setting up and running measurements
  • Analysing and manipulating peaks
  • Sharing data directly via e-mail, Dropbox, or any other file sharing service
  • All files compatible with PSTrace

.

Software Development Kits

The PalmSens Software Development Kits (SDKs) for .NET can be used with any of our instruments or OEM potentiostat modules to develop your own software. The SDK’s come with a set of examples that shows how to use the libraries.

PalmSens SDKs with examples are available for the following .NET Frameworks:

  • WinForms
  • WPF
  • Xamarin (for Android)

Main extensions for EmStat3:

Click here to see all EmStat3 compatible extensions and accessories.
