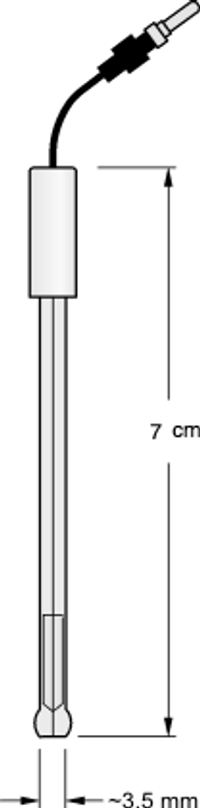

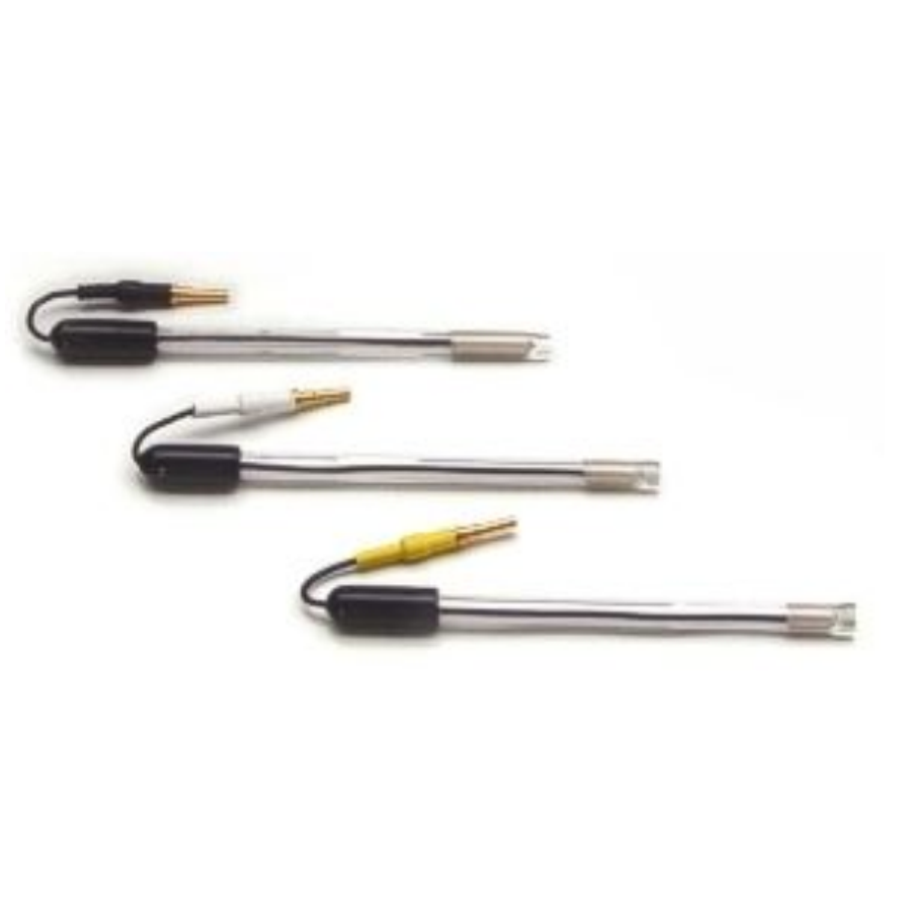

Microelectrodes consist of small diameter metal wires or fibers (5-100 µm) sealed within tempered glass bodies. The flattened end of the microelectrode is polished to a mirror finish, which can be maintained using the polishing materials contained in the PK-4 Polishing Kit. The electrical connection is a 0.060″ gold-plated pin. Dimensions of the electrode are approximately 7 cm long and 4 mm OD. Each microelectrode is visually inspected and electrochemically tested before shipping.
|MF-2005||10 µm diameter Platinum Microelectrode|
|MF-2006||10 µm diameter Gold Microelectrode|
|MF-2007||11 µm (±2 µm) diameter Carbon Fiber Microelectrode|
|MF-2150||100 µm diameter Platinum Microelectrode|
|MS-1081||Cell top bushing for microelectrodes|
