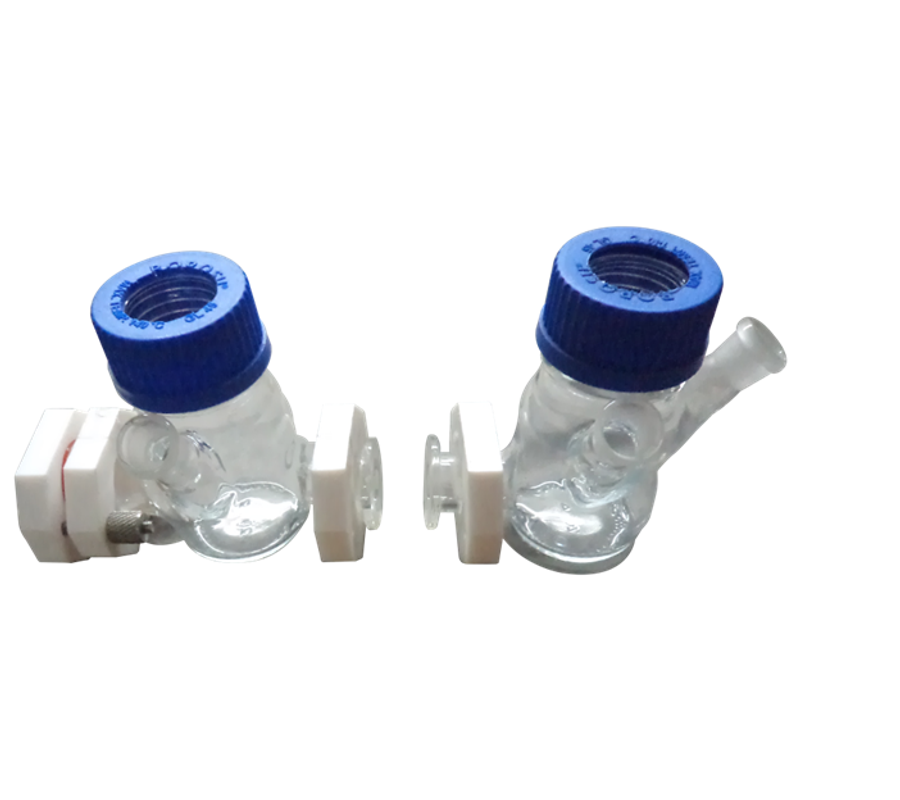

Cela fotoelektrochemiczna H-Cell

The IP-PECHC50 is a fully equipped, horizontally mounted and a dual compartment H-Cell set-up with an additional quartz window (light input port diameter: 20 mm) for studies in photo-based electrocatalysis such as Hydrogen Evolution Reaction (HER), Oxygen Evolution Reaction (OER), and more. The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers can be separated with an ion-exchange membrane (DuPont’s Nafion® membrane – not included in the price), so the electrochemical products appearing at working and counter electrode do not affect the opposite electrode.
Available Volumes: 100 mL, 250 mL, 500 mL, and 1000 mL
