Elektrody niewodne Ag/AgCl

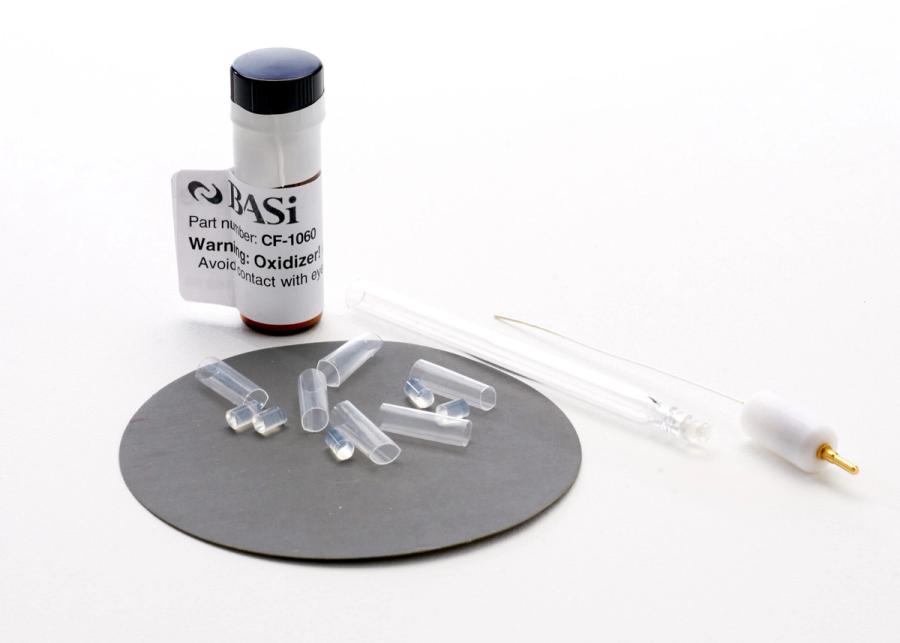

This kit contains the parts required for construction of a non-aqueous silver/silver ion reference electrode. The glass electrode body has a porous CoralPor™ tip attached with heat shrink tubing. The removable Teflon top contains a silver wire and 0.060 ” gold-plated connecting pin for the cell lead. The kit also contains solid silver nitrate, extra heat shrink tubing, and extra porous CoralPor™ tips. Non-aqueous solvents must be supplied by the user. An instruction sheet illustrates easy assembly.


Non-Aqueous Silver/Silver Ion (Ag/Ag+) Reference Electrode Kit
Part Number Description
MF-2062 Non-Aqueous Reference Electrode Kit

Non-Aqueous Reference Electrode Parts and Accessories

Part Number Description
MF-2030 Double-Junction Reference Electrode Chamber
MW-1085 Non-aqueous Reference Electrode: Glass tube with CoralPor™ Tip and Cap with Silver Wire
MF-2042 Glass Tube Porous CoralPor™ Tip, 6 mm OD 7.5 cm long
MF-2064 Porous CoralPor™ Tip, 1/8″ long (5/pkg) wtih 1/2″ lengths of Teflon heat shrink (6/pkg)
CF-1060 Silver Nitrate 1 g
