Standardowa cela elektrochemiczna z płaszczem wodnym

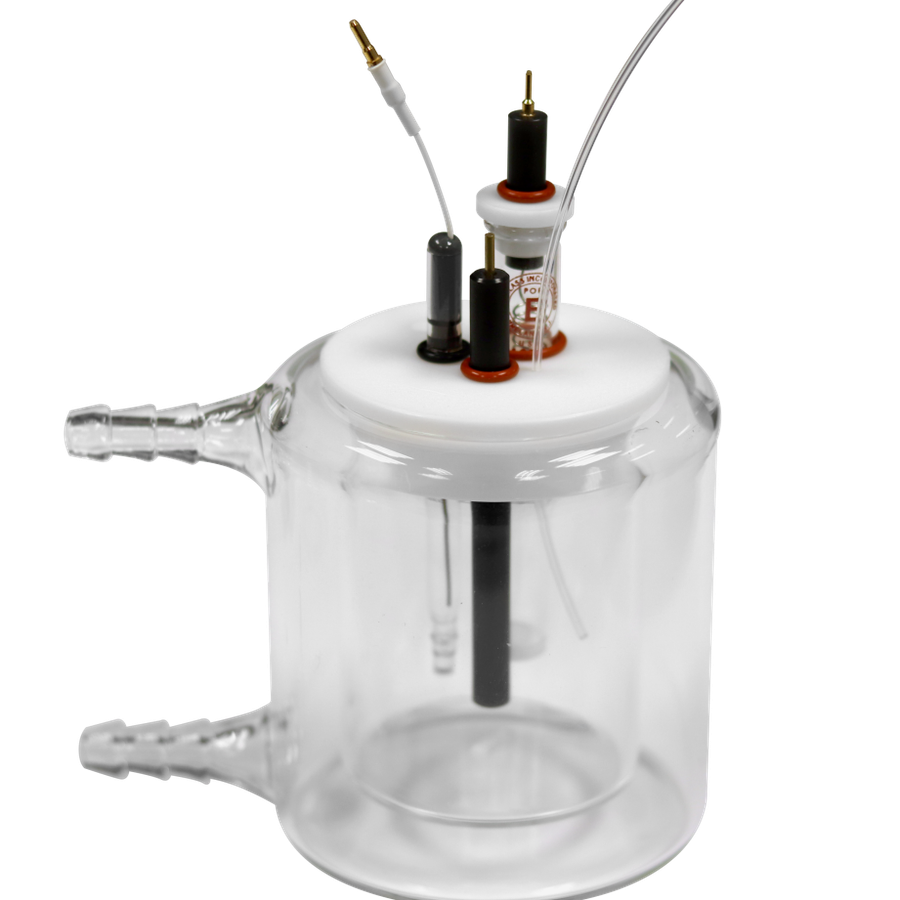

This water-jacketed standard electrochemical cell is designed for use with BASi standard reference electrodes, standard working electrodes, and auxiliary electrodes. The water-jacketed glass cell comfortably holds a volume of around 100 mL and will allow you to test 25-75 mL of solution once electrodes are placed into solution. The water-jacketed glass cell allows the user to perform electrochemical techniques at controlled and equilibrated temperatures. It also comes with Teflon tubing for purging or blanketing your solution.


Includes: (1 each)
ER-9132 Teflon coated stir bar
MF-2052 RE-5B Ag/AgCl electrode
MW-1033 Coiled Pt wire aux. electrode
MR-1194 100 mL water-jacketed glass cell
MR-1199 BE teflon cell top
MR-1196 Auxiliary electrode chamber
MR-1198 Auxiliary electrode bushing
MF-2012 Glassy carbon working electrode – 3 mm diameter
MF-1065 Teflon tubing 1/16″ OD
MR-1236 O-ring for BE cell aux chamber

MF-2060 – PK-4 Electrode Polishing Kit
