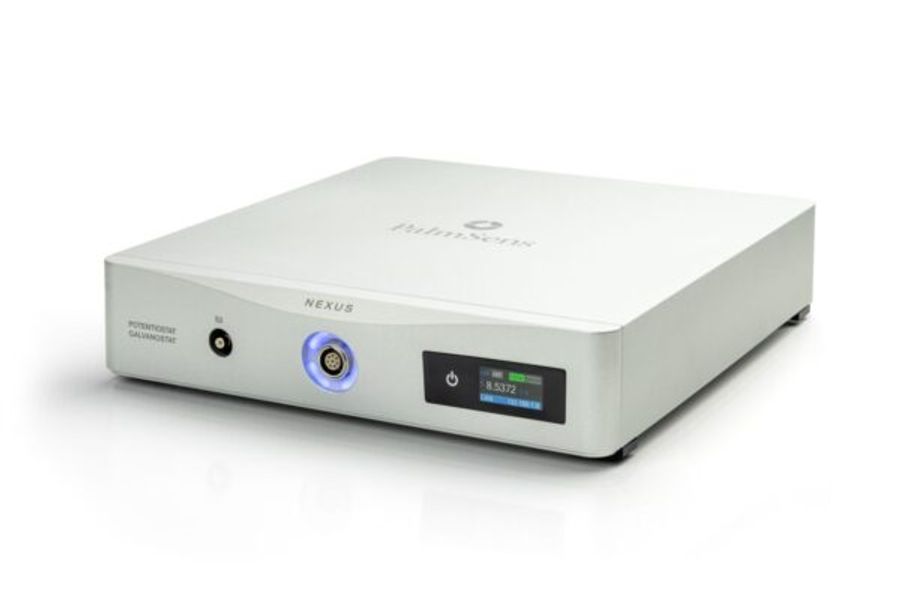

Nexus

Description

Building on PalmSens’ legacy of providing top-tier solutions for accurate low-current measurements, Nexus delivers an ultra-low-noise performance that exceeds even our existing portable devices, while also supporting measurements up to 1 Ampere.

Versatile

Our high-end instrument, the Nexus, is a Potentiostat, Galvanostat, and optional a Frequency Response Analyser (FRA) for Electrochemical Impedance Spectroscopy (EIS). The Nexus has a large potential range (-12V to +12V) and current range (100 pA to 1 A) with a high resolution and low noise. The research software PSTrace makes using the Nexus a breeze. The scripting language MethodSCRIPT gives a user full control when needed. Looking for a multi-channel instrument? Just stack multiple instruments on top of each other.

Configurable

Nexus comes in different configurations:

optional EIS/FRA module with maximum frequency of 1 MHz
optional BiPotentiostat module for second WE

S2 and BiPot

Nexus includes a Second Sense lead (S2) and an optional BiPotentiostat (BiPot) module. S2 – Additional voltage (potential) measurement point BiPot – Independent second working electrode for simultaneous current measurement These two features are independent and serve distinct purposes:

S2 (Second Sense Lead) S2 acts as an additional voltage-sensing input, with the same specifications as the main reference electrode. It measures the potential at a specific point in the cell and, because the current at that point is known, it can also be used to calculate impedance.
BiPot (BiPotentiostat Module) The BiPot module introduces a second working electrode (WE2), operating versus the same reference and counter electrodes as the main channel. In BiPotentiostat mode, both working electrodes (WE1 and WE2) are recorded simultaneously. WE2 operates in potentiostatic mode, meaning it can independently control its potential and measure its current. Refer to our BiPotentiostat article to check which techniques are available when using this mode.

Standard included

Carrying padded bag containing:

High quality, double shielded cell cable with 2 mm banana connectors for Working, Sense, Counter, Reference electrode and Ground
Chassis ground cable with croc clip (4 mm)
Hardware Sync Link cable
Crocodile clips
Calibration report
Dummy cell
USB cable and Ethernet cable
Manual and Quick Start document
PSTrace software for Windows
iR-compensation (ohmic drop compensation) module
Second Sense lead cable

Nexus – strona producenta

Nexus – katalog

Techniques

Voltammetric techniques

Linear Sweep Voltammetry (LSV)
Cyclic Voltammetry (CV)
Fast cyclic Voltammery (FCV)
AC Voltammetry (ACV)

Pulsed techniques

Differential Pulse Voltammetry (DPV)
Square Wave Voltammetry (SWV)
Normal Pulse Voltammetry (NPV)

Amperometric techniques

Chronoamperometry (CA)
Zero Resistance Amperometry (ZRA)
Chronocoulometry (CC)
MultiStep Amperometry (MA)
Fast Amperometry (FAM)
Pulsed Amperometric Detection (PAD)
Multiple-Pulse Amperometric Detection* (MPAD)

Potentiometric techniques

Linear Sweep Potentiometry (LSP)
Chronopotentiometry (CP)
MultiStep Potentiometry (MSP)
Open Circuit Potentiometry (OCP)
Stripping Chronopotentiometry* (SCP / PSA)

Impedimetric techniques

Potentiostatic Electrochemical Impedance Spectroscopy (PEIS)
Galvanostatic Electrochemical Impedance Spectroscopy (GEIS)
DC-potential sweep
Impedance time scan
Fast EIS/GEIS

Other

Mixed Mode (MM)
Custom techniques (MethodSCRIPT)
BiPotentiostat techniques

Techniques marked with an * will become available with a software update at a later moment.

PSTrace

PSTrace for Windows provides support for all techniques and device functionalities. It has three modes; the Scientific mode which allows you to run all the techniques our instruments have to offer, and two dedicated modes for Corrosion analysis and the Analytical Mode. With a smooth simple interface, showing only the applicable controls, PSTrace is suitable for all levels of user experience. Functions include:

Direct validation of method parameters
Equivalent Circuit Fitting
Automated peak search
Scripting for running an automated sequence of measurements
Open data in Origin and Excel with one click of a button
Load data from the instrument’s internal storage

More information about PSTrace Accessories for the Nexus
