Cela do pomiarów spektroelektrochemicznych

This cell is designed for the complete electrolysis of a solution species. Typical uses include determination of the number of electrons transferred per molecule, the absolute amount of an analyte, or electrosynthesis of a small amount (typically milligram quantities) of a new material. Components of the complete package are shown in the figure below.

Category: BASi Tags: ,

Opis

  • Monitor in real time the chromic changes associated with a reduction/oxidation reaction including reactant, intermediate(s) and/or final product(s) by spectroscopic means.
  • Platinum and Gold mini-grid electrodes are available.
  • Uses standard BASi® reference electrode (purchased separately)

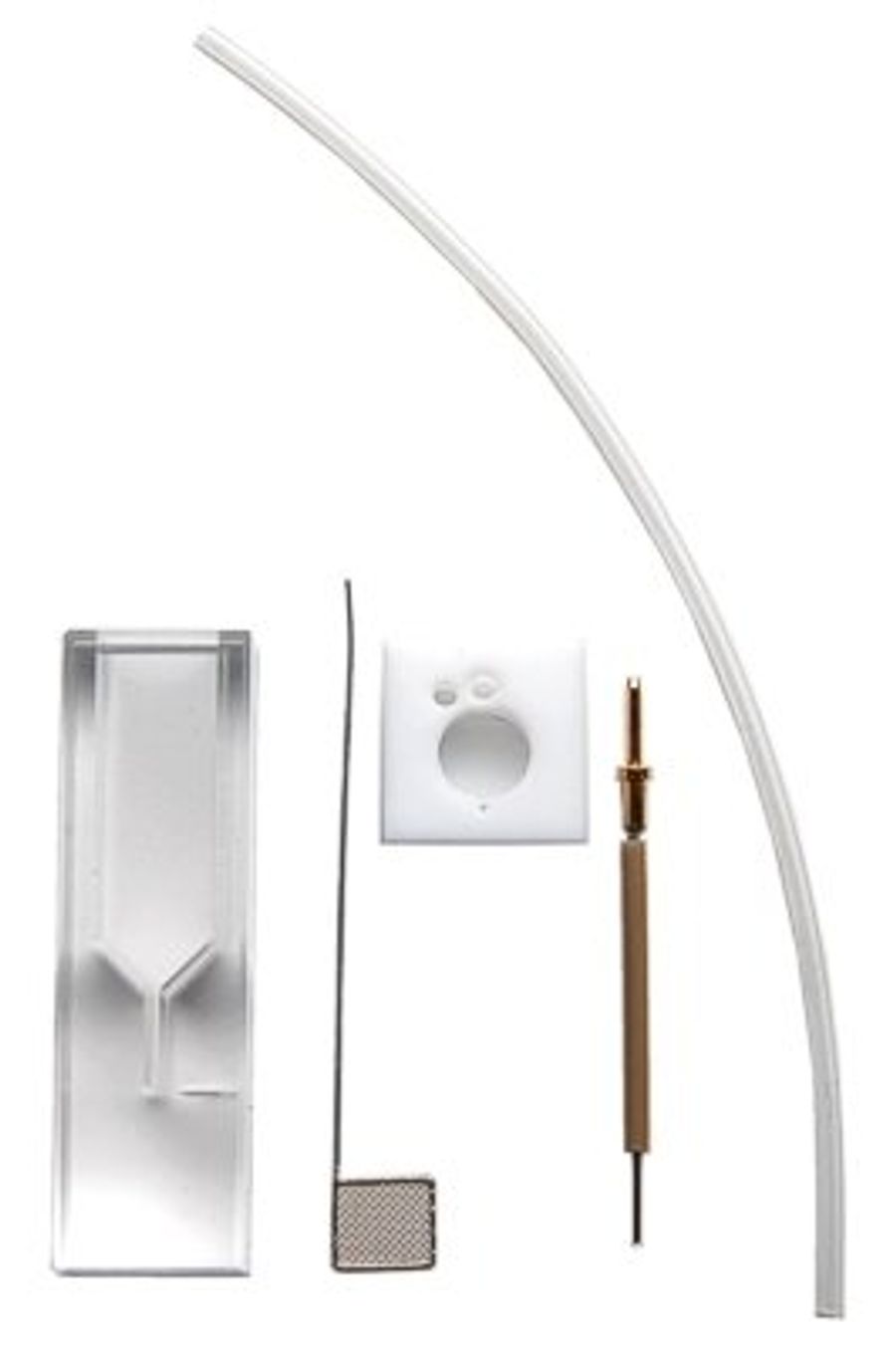

  • Kit includes:
    • Thin-layer quartz cuvette
    • Platinum or gold minigrid working electrode
    • Platinum wire auxiliary electrode
    • Teflon cap
    • Chemically inert plastic purge tube
  • Additional electrodes not included:
    • MF-2052– RE-5B Ag/AgCl Reference Electrode (1 each)
    • MW-2030 – RE-6 Ag/AgCl Reference Electrode (3/pkg)
    • MF-2062 – Ag/Ag+ Non-Aqueous Reference Electrode

0.5 mm Platinum Gauze

EF-1362 0.5 mm SEC-C Thin Layer Quartz Glass Spectroelectrochemical cell Kit with Platinum Gauze Working Electrode
Items included in the 0.5 mm EF-1362 kit:
EF-1365 SEC-C Pt Gauze working electrode, 0.5 mm cell
EF-1361 SEC-C Pt counter electrode, 0.5 mm cell
EF-1364 SEC-C Thin Layer Quartz Glass cell. Light pathlength: 0.5 mm
EF-1359 SEC-C Teflon Cap
EF-1360 Purging tube
Optional Product
EF-1366 SEC-C Au Gauze Working Electrode, 0.5 mm cell

1 mm Platinum Gauze

EF-1350 1 mm SEC-C Thin Layer Quartz Glass Spectroelectrochemical cell Kit with Platinum Gauze Working Electrode
Items included in the 1 mm EF-1350 kit:
EF-1355 SEC-C Pt Gauze working electrode, 1 mm cell
EF-1356 SEC-C Pt counter electrode, 1 mm cell
EF-1358 SEC-C Thin Layer Quartz Glass cell. Lightpath length: 1 mm
EF-1359 SEC-C Teflon Cap
EF-1360 Purging tube
Optional Product
EF-1357 SEC-C Au Gauze Working Electrode, 1 mm cell

0.5 mm Gold Gauze

EF-1363 0.5 mm SEC-C Thin Layer Quartz Glass Spectroelectrochemical cell Kit with Gold Gauze Working Electrode
Items included in the 0.5 mm EF-1363 kit:
EF-1366 SEC-C Au Gauze Working Electrode, 0.5 mm cell
EF-1361 SEC-C Pt counter electrode, 0.5 mm cell
EF-1364 SEC-C Thin Layer Quartz Glass cell. Light pathlength: 0.5 mm
EF-1359 SEC-C Teflon Cap
EF-1360 Purging tube
Optional Product
EF-1365 SEC-C Pt Gauze working electrode, 0.5 mm cell

1 mm Gold Gauze

EF-1351 1 mm SEC-C Thin Layer Quartz Glass Spectroelectrochemical cell Kit with Gold Gauze Working Electrode
Items included in the 1 mm EF-1351 kit:
EF-1357 SEC-C Au Gauze Working Electrode, 1 mm cell
EF-1356 SEC-C Pt counter electrode, 1 mm cell
EF-1358 SEC-C Thin Layer Quartz Glass cell. Lightpath length: 1 mm
EF-1359 SEC-C Teflon Cap
EF-1360 Purging tube
Optional Product
EF-1355 SEC-C Pt Gauze working electrode, 1 mm cell
