Multiplexer for 8 cells

  • Automatically switch between electrochemical cells
  • Easy stacking with magnetic feed and top
  • 4 different electrode or sensor configurations
  • Daisy chain multiplexers, up to 128 channels!
Category: PalmSens Tags: ,


The PalmSens series and EmStat Blue can be used to work with multiple working electrodes or a sensor array by means of a multiplexer. The multiplexer switches between the working electrodes in the range of milliseconds. There are two versions of the multiplexer available.

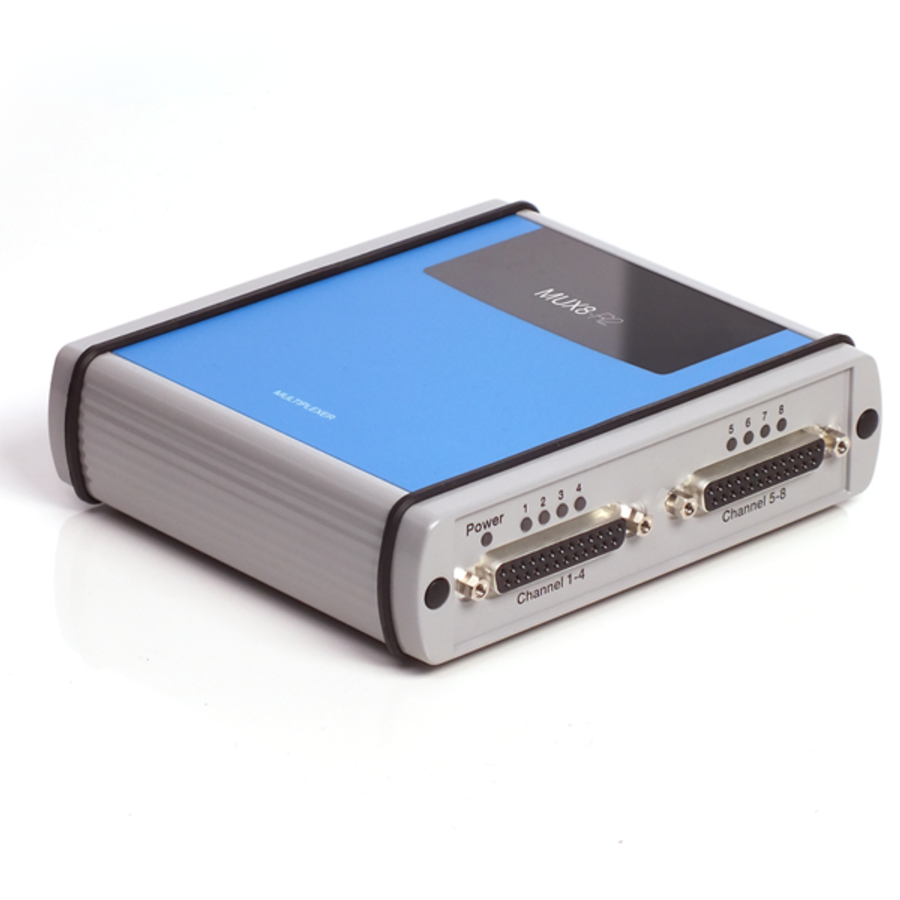

MUX8-R2 multiplexer: enables to work with up to eight 2- or 3- electrode systems.

The MUX8-R2 is the successor of our popular MUX8. The design has been revised and improved leading to several new features.

  • improved performance for OCP measurement
  • reduced charge injection by switching
  • all hardware settings are controlled by the software making it unnecessary to flick a physical switch
  • allows to be used with the new 4-in-1 cell cables (easier and better connections), i.e. MUX8 Connection Terminal is not needed
  • allows to connect auxiliary input (like temperature sensor)
  • LEDs to show which channel is selected
  • daisy chaining multiple MUX8-R2 boards (expansion up to 128 channels)


The most selected connection option uses two double shielded D-Sub cables ending in 2 mm banana plugs. As alternatives we can provide a PCB with screw terminalsD-Sub cable ending in ferrules or Screen Printed Electrode Adapter. Each of these cables can be connected to 4 channels, if all 8 channels are used, two cables are needed.
