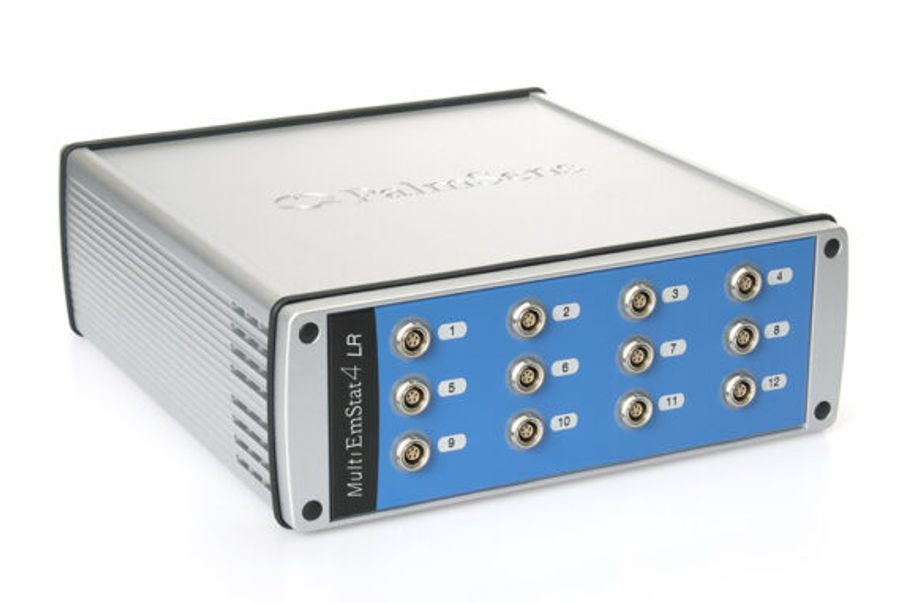

The MultiEmStat is a versatile multi potentiostat with 4, 8 or 12 independent EmStat potentiostats. The channels can perform experiments independently of each other.
The MultiEmStat is conveniently connected by means of a single USB connection and controlled by MultiTrace. Each potentiostat has eight (EmStat3) or nine (EmStat3+) current ranges: 1 nA to 10 mA/100 mA with a resolution of 1 pA at the lowest current range and can automatically select the optimal current range.
MultiEmStat3 is available as four channel in the small housing and 8 and 12 channel in the larger housing.
MultiEmStat3+ is available as 4, 8 or 12 channel and always comes in the larger housing.
|dc-potential range||± 3.000 V||± 4.000 V|
|compliance voltage||± 5 V||± 8 V|
|dc-potential resolution||0.1 mV||0.125 mV|
|potential accuracy||0.2 %||0.3 %|
|current ranges||1 nA to 10 mA (8 ranges)||1 nA to 100 mA (9 ranges)|
|maximum current||± 20 mA typical
and ± 15 mA minimum
|± 100 mA typical|
The current is measured using a zero resistance ammeter (ZRA).
|current resolution||0.1% of current range, 1 pA at lowest current range|
|electrometer amplifier input||> 100 Gohm // 4 pF|
|rise time||approx. 100 μs|
|housing||MultiEmStat3 4Ch: 8 cm x 12 cm x 3.5 cm|
|other: 20 cm x 12 cm x 7 cm|
|weight||MultiEmStat3 4Ch: 0.260 kg|
|power||external 5V adapter for MultiEmStat3 4Ch
external 9V adapter for all other versions
|sensor connection||shielded cable with circular connector for WE, Sense (MultiEmStat3+), RE and CE|
