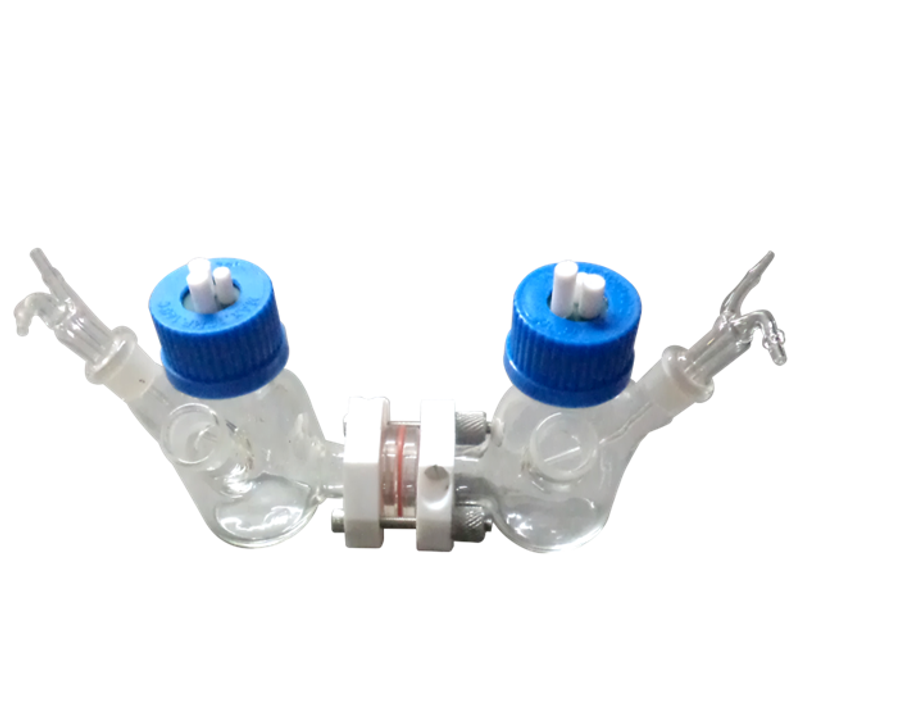

The IP-HC-50 is a fully equipped, horizontally mounted and a dual compartment electrochemical H-Cell set-up for a wide variety of studies that require a separate compartment for counter and / or reference electrodes. The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers can be separated with an ion-exchange membrane (DuPont’s Nafion® membrane – not included in the price), so the electrochemical products appearing at working and counter electrode do not affect the opposite electrode. Set-up is compatible with a power source meter or a potentiostat / Galvanostat.
Available Volumes: 25 mL, 100 mL, 250 mL, 500 mL, and 1000 mL
