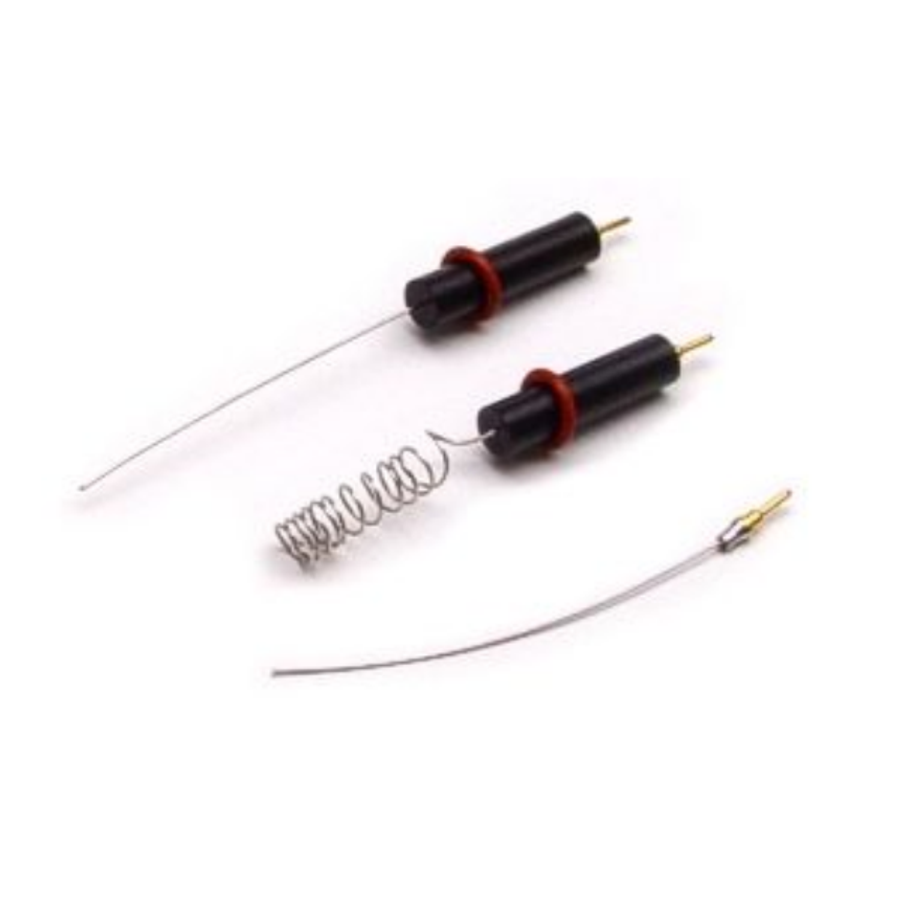

Platinum wire auxiliary electrodes (0.5 mm diameter) are available in a variety of lengths. The electrode of choice depends upon the type of BASi® cell (and the experiment), as listed below. Each platinum wire terminates in a gold-plated brass connector. Electrical connection to this pin can be made using either an alligator clip or a 0.040″ gold-plated connector (MF-2000).
|MW-1032||Platinum Wire Auxiliary Electrode (7.5 cm), with gold-plated connector, mounted in CTFE cylinder. For use with the C-2 and the C-3 Cell Stands.|
|MW-1033||Coiled Platinum Wire Auxiliary Electrode (23 cm), with gold-plated connector, mounted in CTFE cylinder. For use with the RDE-1, the RDE-2, and the bulk electrolysis cell.|
|MW-4130||Platinum Wire Auxiliary Electrode (6.5 cm) with gold-plated connector for use with the C1 Cell Stand, the VC-2 Voltammetry Cell, and in the Low Volume Cell for the C-2 and C-3 Cell Stands.|
|MW-4131||Graphite rod (6 mm diameter and 7.5 cm height) with a gold-plated connector.|
|MW-4132||Platinum mesh electrode. 2.0 cm x 2.0 cm , 0.1 mm wire diameter, 99.9% purity|
