Elektrody chlorosrebrowe

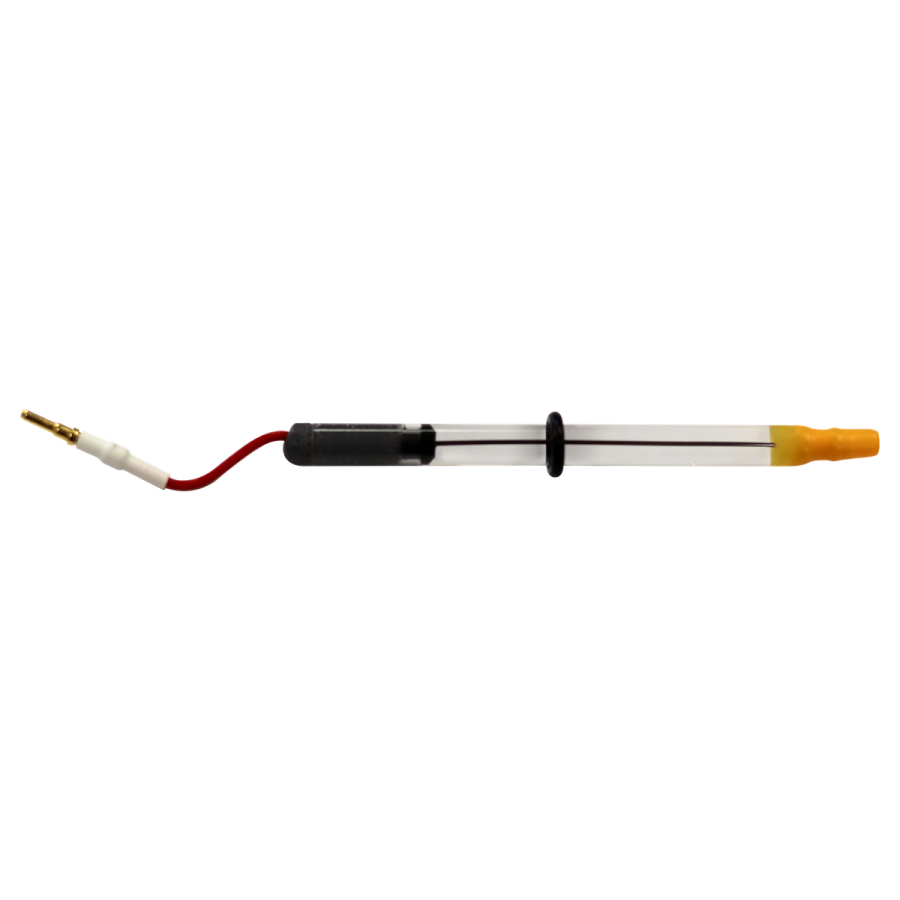

These compact, glass-bodied reference electrodes are available in two styles. The 7.5 cm long RE-5B reference electrode is used for electrochemistry experiments and is compatible with the C-3 Cell Stand, the CGME Controlled Growth Mercury Electrode Cell Stand, and the RDE-2 Rotating Disk Electrode Cell Stand. The RE-6 reference electrode (3 cm) is designed for use with the Electrochemical Flow Cell. All electrodes have a 6 mm OD glass body, and use a porous junction (frit) made from a ceramic material (RE-6) or CoralPor™ (RE-5B). (Note that, due to the high resistance of the ceramic frit, the RE-6 electrode is only recommended for aqueous electrolytes.)

Connection to the cell lead is via a gold-plated pin on the end of a flexible plastic-coated wire (RE-5B and RE-6) An O-ring is included with each electrode. Between uses, reference electrodes should be stored with junction tips in a MR-5275 vial filled with 3M NaCl.

A double junction reference electrode can be set up using an RE-5B reference electrode with the glass chamber MF-2030. This chamber also has a CoralPor™ frit, which must be maintained.


Silver/Silver Chloride Standard Reference Electrodes

 MF-2052  RE-5B Ag/AgCl (3M NaCl) Reference Electrode with Flexible Connector
 MR-5275  Storage vial for Ag/AgCl reference electrodes (Aqueous only)
 MF-2042  Glass tube with porous CoralPor™ tip
 MF-2030  Double-junction reference electrode chamber
 MF-2064  Porous CoralPor™ Tips 1/8″ long (5/pkg.) with 1/2″ lengths of Teflon heat shrink (6/pkg.)
 MF-2027  Teflon heat shrink tubing, ~4mm OD x 30cm
 MF-2044  O-ring, 1/4″, 12/pkg
 MF-2017  Silver Wire, 0.5mm dia., 12″ (30cm) long

Silver/Silver Chloride Electrochemical Flow Cell Reference Electrodes

 MW-2030  RE-6 Reference Electrode with Flexible Connector
 MR-5275  Storage vial for Ag/AgCl Reference Electrodes (Aqueous only)
 MR-3608  PEEK Reference Electrode Retainer


 RE-4 Ag/AgCl Reference Electrode
 MF-2022  RE-4 Bushing, 10/pkg.
 MF-2023  O-Ring for RE-4 and RE-6, 10/pkg.
 MR-1245  O-Ring for Non-aqueous solvent, RE-4 and RE-6
