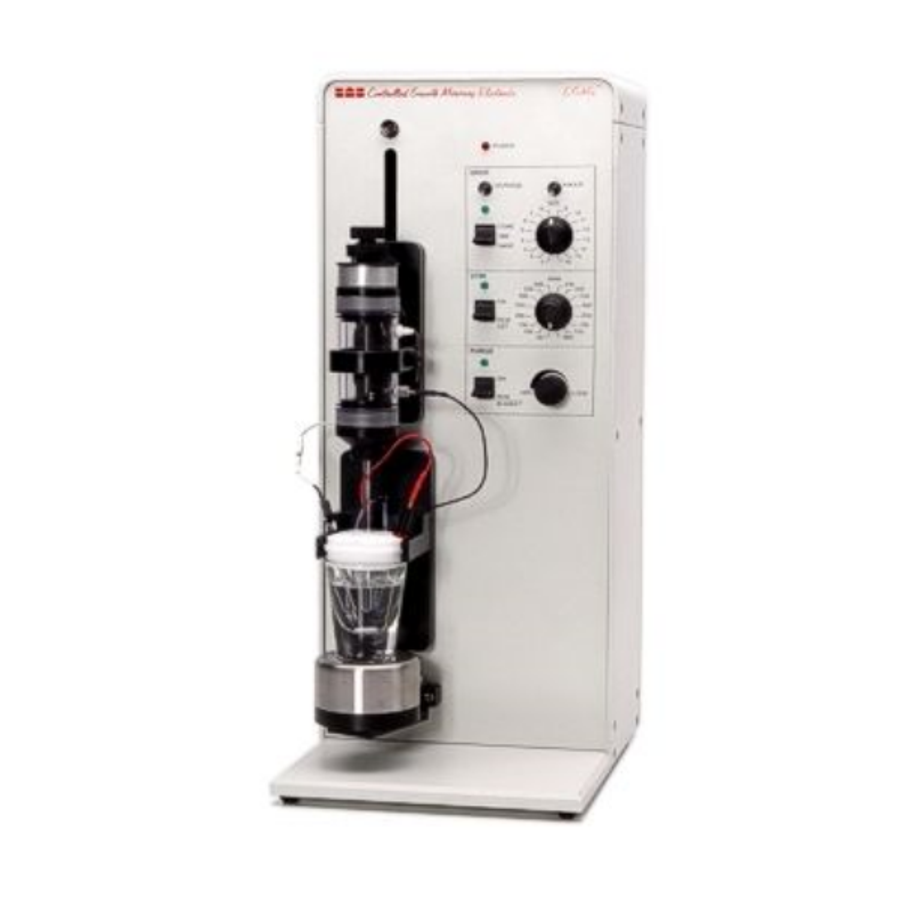

Controlled Growth Mercury Electrode


Mercury drop working electrodes are invaluable for certain applications due to their high overpotential for hydrogen ion reduction and the high reproducibility of the electrode surface.

Mercury drop electrodes are generated by the BASi® Controlled Growth Mercury Electrode (CGME) in three modes:

    • DME (Dropping Mercury Electrode) – mercury is allowed to flow freely from the reservoir down the capillary and so the growth of the mercury drop and its lifetime is controlled by gravity. (The optional 100 µm capillary is recommended for this mode.)


  • SMDE (Static Mercury Drop Electrode) – the drop size is determined by the length of time for which the fast-response capillary valve is opened, and the drop is dislodged by a drop knocker. The dispense/knock timing is microprocessor-controlled and is typically coordinated with the potential pulse or square-wave waveform. This mode can also used to generate the Hanging Mercury Drop Electrode required for stripping experiments.

The CGME mode is available only on the BASi 100B/W and the CV-50W, whereas the SMDE mode is available with any PC- or microprocessor-controlled potentiostat (including the EC epsilon EClipse). The dispense and knock functions can also be manually controlled, so a Hanging Mercury Drop Electrode can be generated manually (e.g., for stripping experiments using the CV-27).

A built-in gas control allows purging or blanketing of the sample prior to or during analysis, and there is a magnetic stirrer for experiments requiring convection, such as stripping voltammetry. The cell arm with detachable cell top allows easy access to the electrodes for rinsing and cleaning, and the cell top is also compatible with BASi® voltammetry working electrodes. The stir motor/cell vial base pivots for easy removal and replacement of the cell vial.

Please note that mercury is not included with the CGME due to shipping regulations. Please purchase triply- or quadruply-distilled mercury from a company that is licensed to ship mercury.


  • Wide range of drop sizes
  • Programmable drop growth with the BASi 100B/W and CV-50W
  • DME, SMDE, and CGME modes
  • HMDE available in SMDE and CGME modes
  • Good electrical contact minimizes electrode resistance
  • Fast response time
  • Rapid drop stabilization
  • Small volume glass cell vials
  • Water-jacketed cell vial
  • Cell top compatible with BASi® voltammetry electrodes
  • Standard addition port
  • Quick-connect input gas line connector
  • Easy maintenance
  • Minimal metal contact reduces metal contamination
  • Self-contained power supply
  • Mounted magnetic stirrer with 50-800 rpm
  • Manual and remote control of mercury dispense, drop knock, stirrer on/off, inert gas purge/blanket
  • Minimal chance of mercury spills
  • Standard package:
    • Cell stand with magnetic stirrer and gas purge utilities
    • 150 µm ID glass capillaries (2)
    • Platinum auxiliary electrode
    • Ag/AgCl reference electrodes (3)
    • Standard glass cell vials (12)
    • Stir bar
    • Startup kit (vacuum degas kit, mercury loading syringe, blunt needle, tubing)
    • Mercury pickup tool (plastic rod with silver tip) and plastic spill tray


Cell Modes CGME, SMDE, and DME
Operations Manual and remote control of mercury dispense; drop knocker; stir on/off; gas purge/blanket
Magnetic Stirrer 16 selectable rates from 50-800 rpm
Mercury Reservoir Sealed reservoir minimizes opportunity for mercury spills. Minimal use of metal parts within reservoir or capillary to avoid metal contamination.
Mercury Degassing Mercury degassing kit is included with purchase and includes a hand-actuated vacuum pump and accessories
Spill Management Spill tray and mercury pickup tool are included in the standard package
Standard Capillary 150 µm (0.006 „) ID. Large diameter reduces plugging and loss of electrode contact. Beveled tip design
Gas Purging 5 psi max. Needle valve controlled.
Cell Top Separate port in cell top for dispensing sample or reagents. Accommodates BASi® voltammetry electrodes for use as a cell stand for voltammetry experiments.
Options 100 µm ID capillary
Faraday cage
Small volume and water-jacketed cell vials
Physical 42 x 18 x 23 cm (H x W x D)
6 kg

Ordering Information

EF-1400 Controlled Growth Mercury Electrode
MR-1208 Glass Cell Vials, 12/pkg.
MF-1084 Low Volume Cell Vial, 6/pkg.
ER-9132 Magnetic Stir Bar, 1 ea.
MW-4601 Mercury Trap, 1 ea.
MF-2090 Beveled Capillary Assembly, 150 µm ID, 1 ea.
MF-2092 Beveled Capillary Assembly, 100 µm ID, 1 ea.
MF-2069 Mercury Collector Rod, 1 ea.
MF-7150 Vacuum Prime Pump, 1 ea.
MR-1205 Teflon Cell Vial
MR-1212 Water-Jacketed CGME Cell Vial, 1 ea.
MF-2093 CGME Septum, 1 ea.
MF-1028 CGME Valve Seal, 1 ea.
MF-2052 RE-5B Reference Electrode, 1 ea.
MF-2079 RE-5B Reference Electrode, 3/pkg.
MW-1032 Auxiliary Electrode, 1 ea.
MR-2052 2″ Blunt Tip Needle, 1 ea.
MW-1034 Cell Top Plug, Kel-F, 1 ea.
MR-1241 O-ring for working electrode contact
MR-3850 Spill Tray, 19″ x 12″ x 1.25″
MR-3818 Teflon Cell Top
MF-2048 CGME O-ring Replacement Kit
EW-4366 Replacement Gas Solenoid Assembly
MR-5023 Syringe, 5 mL, plastic
