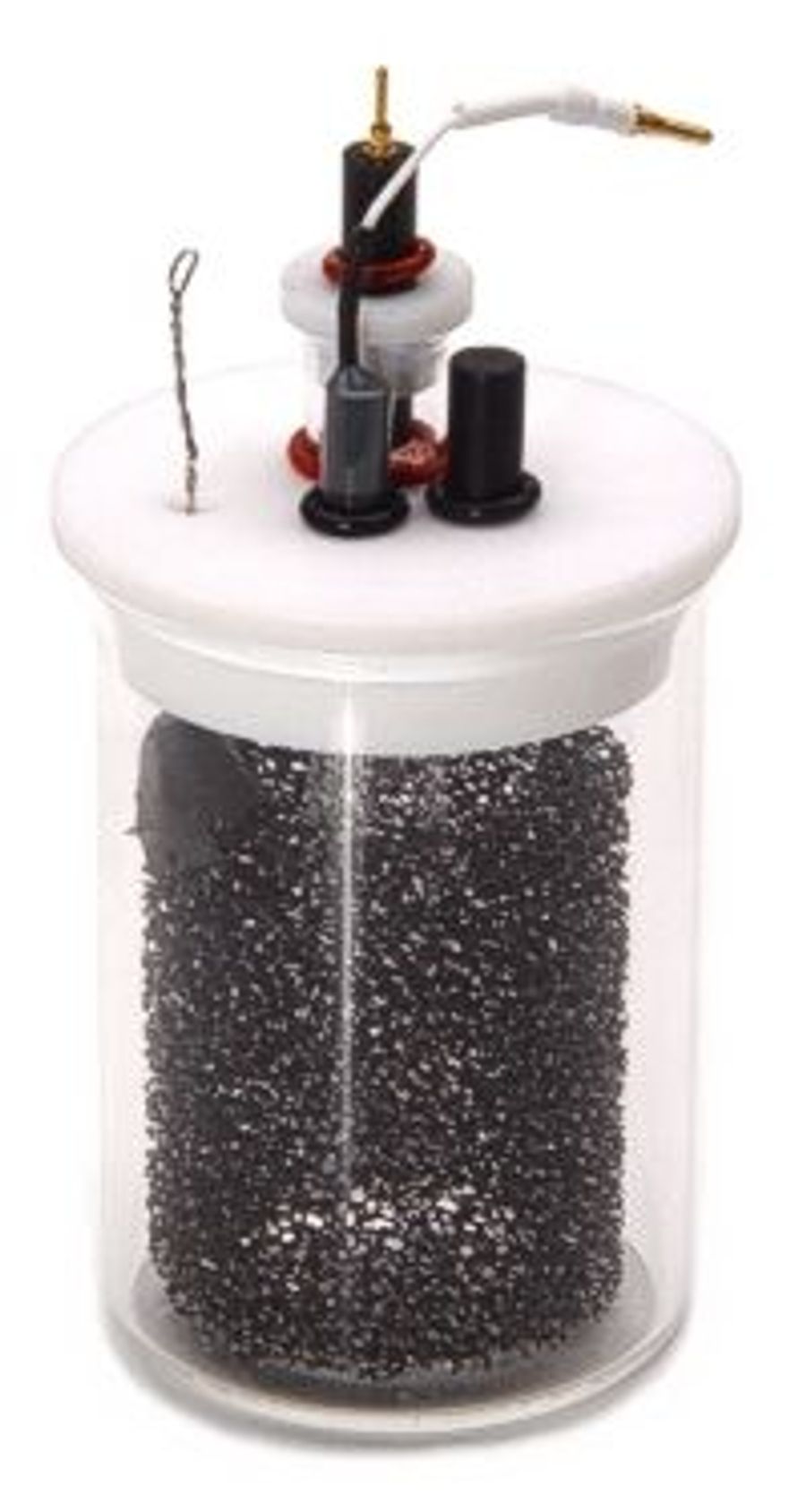

Cela do elektrolizy wyczerpującej

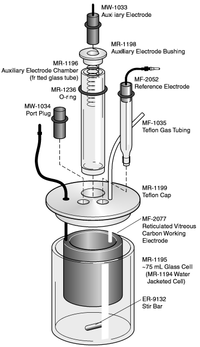

This cell is designed for the complete electrolysis of a solution species. Typical uses include determination of the number of electrons transferred per molecule, the absolute amount of an analyte, or electrosynthesis of a small amount (typically milligram quantities) of a new material. Components of the complete package are shown in the figure below.

Opis

Features

  • Complete electrolysis of electroactive species in solution
  • Large surface-area reticulated vitreous carbon working electrode
  • Optional platinum gauze working electrode
  • Use for small-scale (< 75 mL) electrosynthesis studies
  • Monitor extent of reaction using BASi® stationary voltammetry electrodes

Specifications

Standard unit Includes all components in above diagram
Capacity 75 mL of sample solution in standard glass vial or optional water-jacketed vial
Working Electrode Reticulated Vitreous Carbon (RVC) (platinum gauze is also available – please inquire)
Auxiliary Electrode Coiled 23 cm platinum wire within a fritted glass isolation chamber
Reference Electrode RE-5B Ag/AgCl reference electrode
Port Plug Blocks access port for dispensing of reagents, or venting of cell

Bulk Electrolysis Cell Kit

Part Number Description
MF-1056
Bulk Electrolysis Cell Kit:
  Includes:
  Standard 100-mL glass cell vial (MR-1195)
  Teflon Cell Top (MR-1199)
  Stir bar (ER-9132)
  Reticulated vitreous carbon working electrode (MF-2077)
  RE-5B Ag/AgCl reference electrode (MF-2052)
  Coiled platinum auxiliary electrode (MW-1033)
  Auxiliary electrode chamber (MR-1196)
  O-ring for auxiliary electrode chamber (MR-1236)
  Bushing for auxiliary electrode (MR-1198)
  Port plug (MW-1034)
  Tubing, 1/16” OD Teflon (MF-1035)
